Elevator Wedge Type Lift Spare Parts Wire Rope Attachment

 Elevator Wedge Type Lift Spare Parts Wire Rope Attachment Product Description Advantages:
We make high quality different kinds of elevator rope attachment which is suitable for various wire ropes.
1. Meet standard DIN15315 and DIN43148.
2. Wedge-block type and lead poured type available.
3. Rope attachment parts can be made as casting and forged ones.
4. Passed the testing of the National Elevator Inspection and Testing Center and also being applied by many overseas elevator companies.   Specification:

Wire Rope Diameter (mm)	L (mm)	B (mm)	C (mm)	D (mm)	Md2 Screw Nut
Φ8	375	160	48	Φ26	M14
Φ9.3	395	180	54	Φ26	M14
Φ10	490	180	54	Φ26	M16
Φ11	490	180	54	Φ26	M16
Φ12	510	200	60	Φ26	M16
Φ13	580	218	62	Φ30	M18
Φ16	620	190	76	Φ22	M20



Wire Rope Diameter (mm)	L (mm)	B (mm)	C (mm)	D (mm)	Md2 Screw Nut
Φ6~8	435	150	45	Φ26	M14
Φ9~11	510	180	57	Φ26	M16
Φ12~13	595	230	74	Φ30	M20

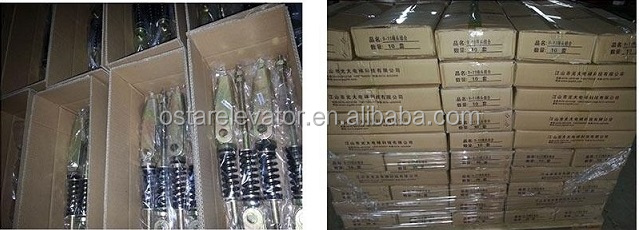

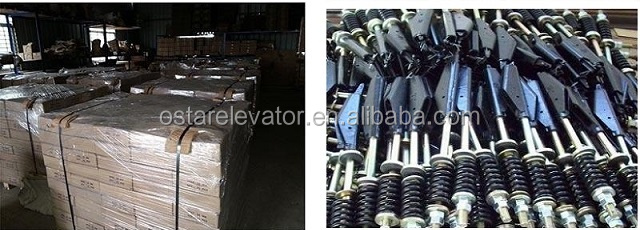

Packaging & Shipping Our Services Help Customers Source in China to reduce their cost
To provide customers with whole purchasing plan of elevator parts;
To find out the best conjunction point between quality and price in order to reduce costs for them. How to develop the suppliers for customers
To get customers' need through communicating.
To find out three to four manufactures of the corresponding parts according to the request of the customers. Ask price and get samples from the manufactures.
To visit the factory (acknowledge the production ability and quality control process).
Basing on the price, sample and visiting, recommend manufacturers to our customers. How to help customers order from the qualified suppliers
Follow the process of the order.
Send QC to inspect on site before shipping to acknowledge the product quality.
Transfer the response from the customers to the suppliers on time, and follow up the improvement. Special package services
Gather Sourced Parts for Dispatch (Less than one container Shpt. Service)
Help customers shipping products directly to the working site oversea:

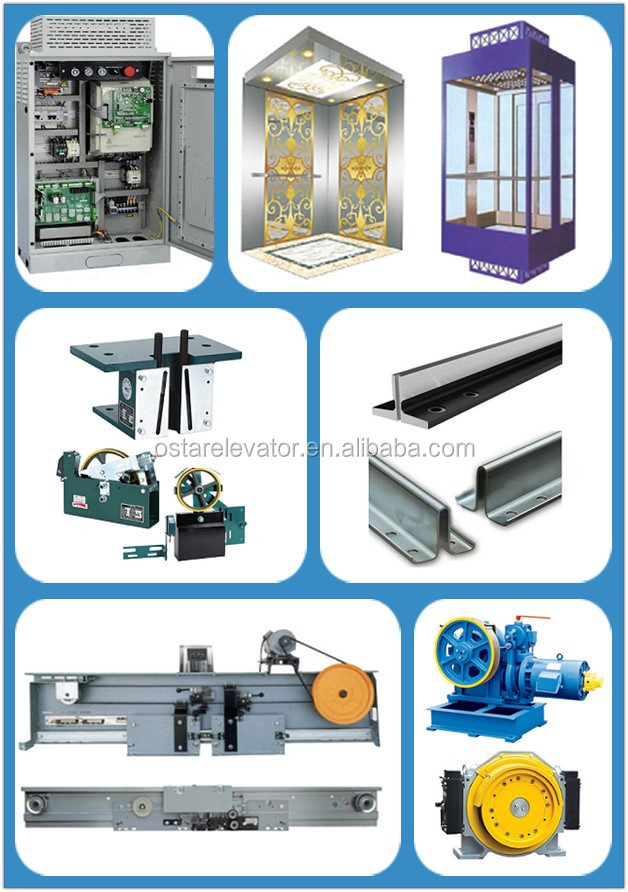

Quick Response Company Information OSTAR Elevator is one-stop elevator parts supplier, and following parts can be provided by us.
Shaft Components includes
Machined/ Cold Drawn/ Hollow Guide Rail, Fishplate , Fasteners, Anchor Bolt, Rail Bracket etc.
Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block, Guide Shoes , Rope Attachment etc.
Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts, Safety Light Curtain/Photocell etc.
Safety Components includes
Safety Gear , Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
Traction System includes
Geared/ gearless traction machine, Pulley Sheave, Anti-vibration Pad, Steel Wire Rope etc.
Electrical Components includes
Integrated and Separated Controlling Cabinet, Yaskawa L1000A Inverter, Elevator Display, COP & LOP & HOP, Elevator Push Button, Flat Travelling Cable etc.

Contact us if you need more details on Lift Spare Parts. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Rope Attachment、Elevator Wedge Type. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Safety Parts
